모델(Model) | 입력 (Power) |
출력 (온도/습도) (OUTPUT SIGNAL) | 검출범위 (온도/습도) (Measuring Range) | 정밀도 (온도/습도) (Accuracy) (at +23℃) |
---|---|---|---|---|

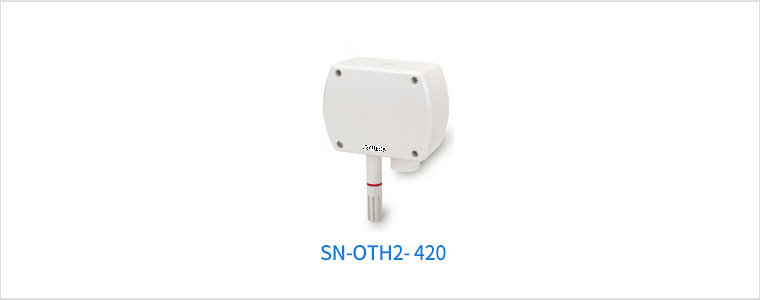

SN-OTH2-420 | 15~30V DC, 24V AC, DC:8mA, AC:20mA | Pt1000Ω / 4∼20mA | -35~+80℃/ 0∼+100%RH |
±0.3℃(at 0℃) / ±1.8%RH (at 0∼80% RH) |
모델(Model) | 입력 (Power) |
출력 (온도/습도) (OUTPUT SIGNAL) | 검출범위 (온도/습도) (Measuring Range) | 정밀도 (온도/습도) (Accuracy) (at +23℃) |
---|---|---|---|---|

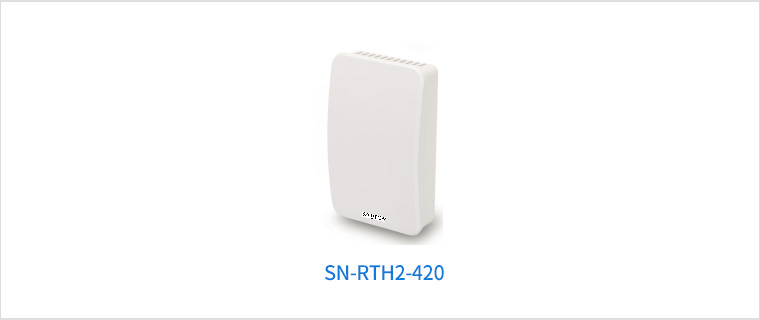

SN-RTH2-420 | 15~30V DC, 24V AC, DC:8mA, AC:20mA | Pt1000Ω / 4∼20mA | -10~+70℃/ 0∼+100%RH |
±0.3℃(at 0℃) / ±1.8%RH (at 0∼80% RH) |
모델(Model) | 입력 (Power) |
출력 (온도/습도) (OUTPUT SIGNAL) | 검출범위 (온도/습도) (Measuring Range) | 정밀도 (온도/습도) (Accuracy) (at +23℃) |
---|---|---|---|---|

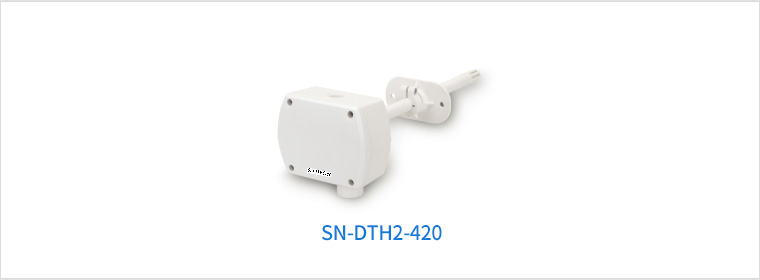

SN-DTH2-420 | 15~30V DC, 24V AC, DC:8mA, AC:20mA | Pt1000Ω / 4∼20mA | -30~+130℃ / 0∼+100%RH | ±0.3℃ (at 0℃) / ±1.8%RH (at 0∼80% RH) |
